The Ninth咖啡馆首店位于上海长风大悦城一楼，处在商场中心的户外中庭的一角。全室外的气候、中庭的广场尺度以及带有街道感的流线为项目带来了完全城市性的特别氛围。伫立于商场拥挤的人流中，咖啡馆就像一艘大船，从内部徐徐驶出，停泊在转角处；弯曲的玻璃立面，连同仿佛桅杆般的木质杆件，好似被风浪吹起的船帆，伴随着人流轻轻摆动。

Located on the ground floor of Shanghai Changfeng Joy City, the Ninth Coffee occupies one corner in the outdoor atrium of the shopping mall. The all-outdoor climate, the square scale of the hall and the street neighbourhood feel bring the project a special urban atmosphere.

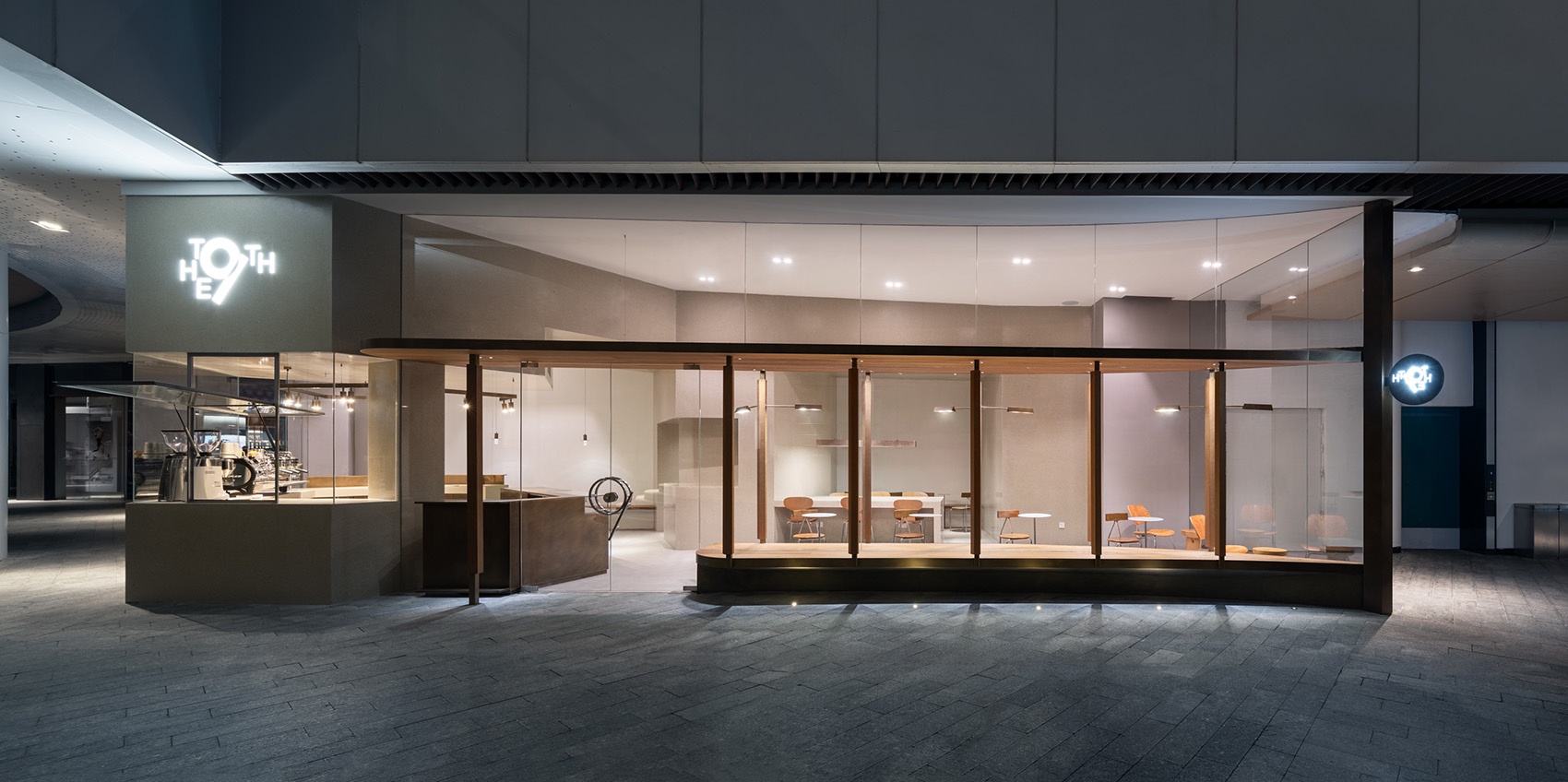

▼建筑外观，exterior view © 陈颢

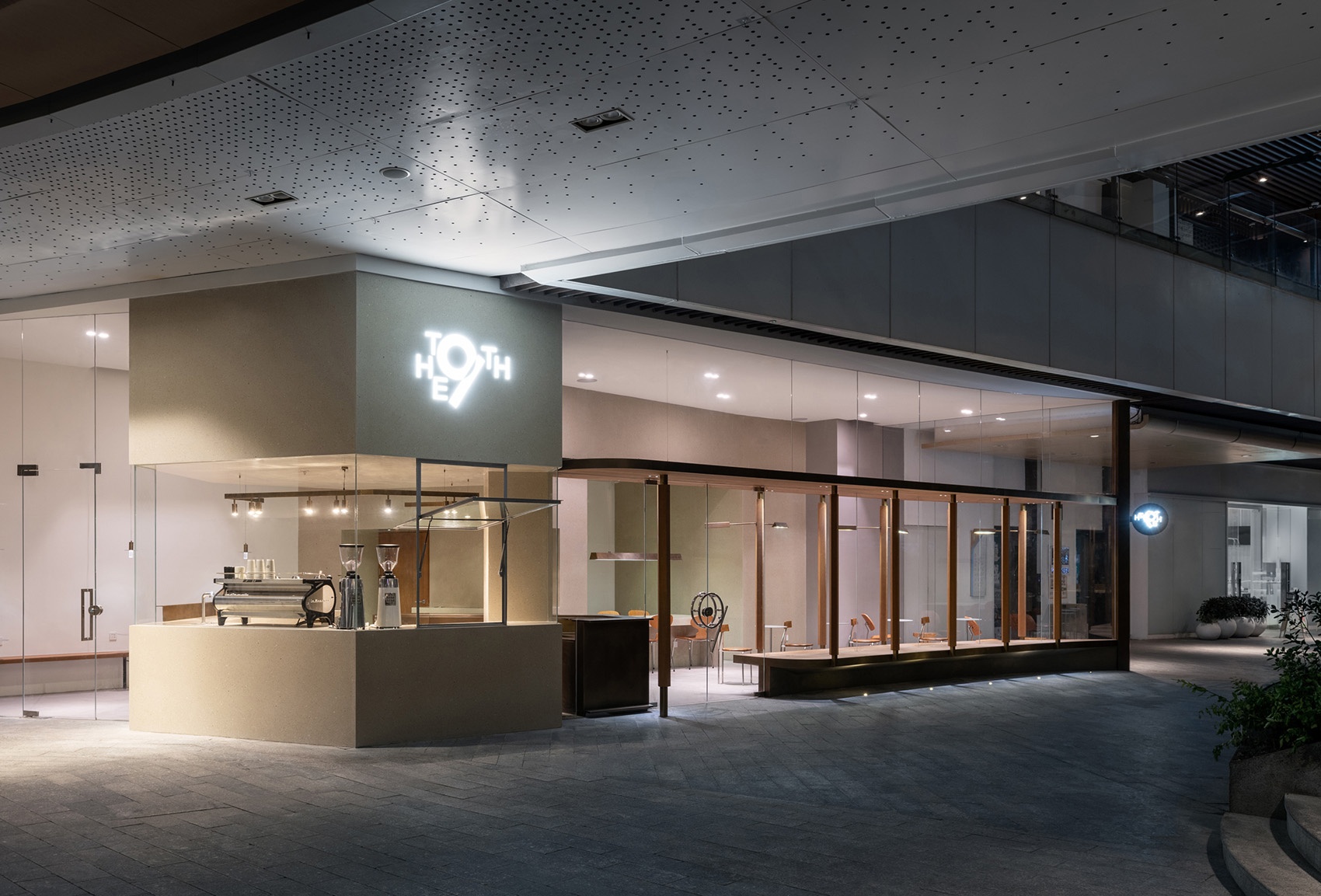

▼建筑长立面外观，the long facade of the building © 陈颢

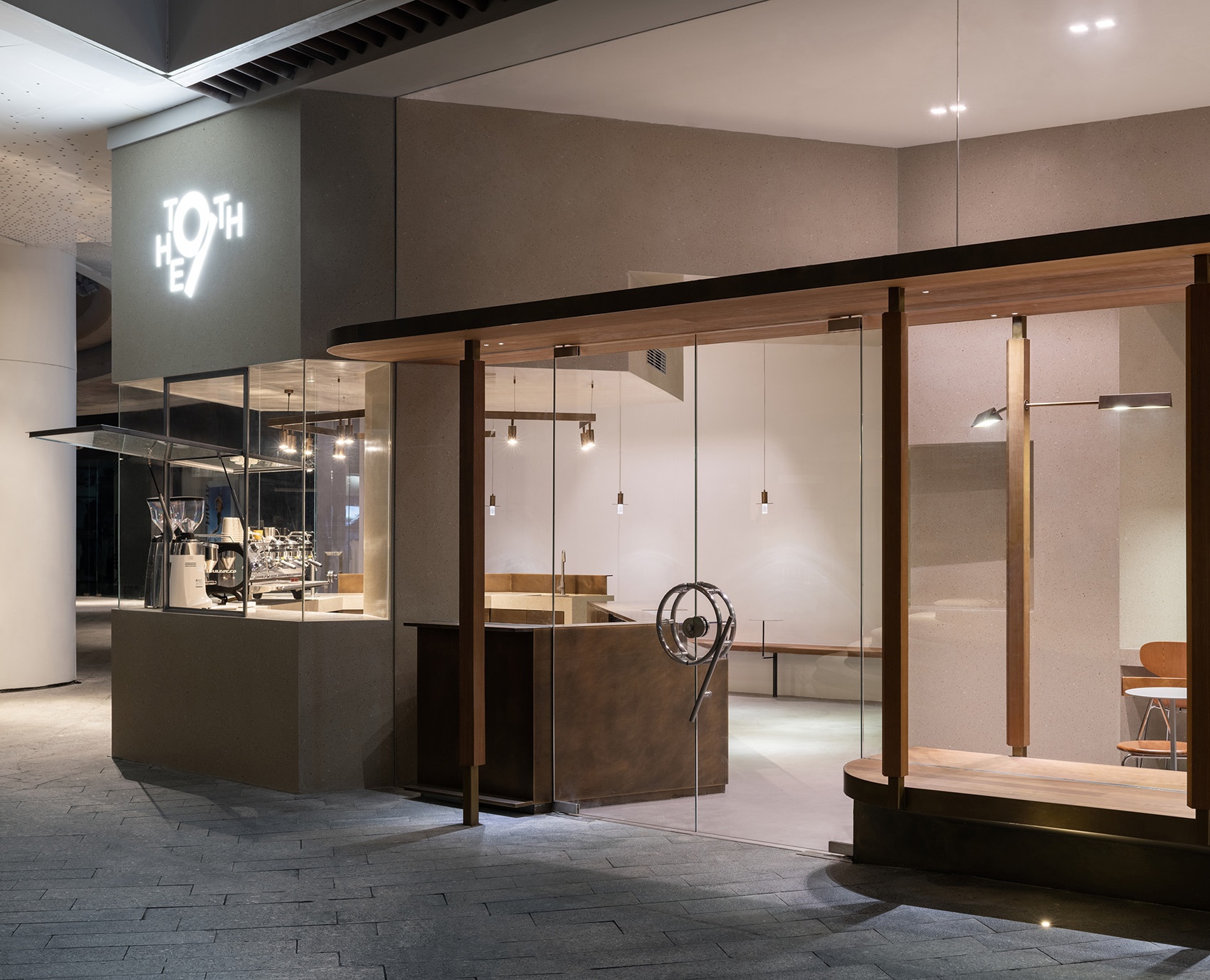

▼紧贴建筑转角红线的Kiosk，closer view of the facade © 陈颢

咖啡馆的空间由一个“支点”：Kiosk, 出发。它像硕大公共广场上立着的一个小边亭，向各个方向打开。对于从任意方向来的行人，这都是最先映入眼帘的、一个强有力的存在—一个买卖与交流的中心。

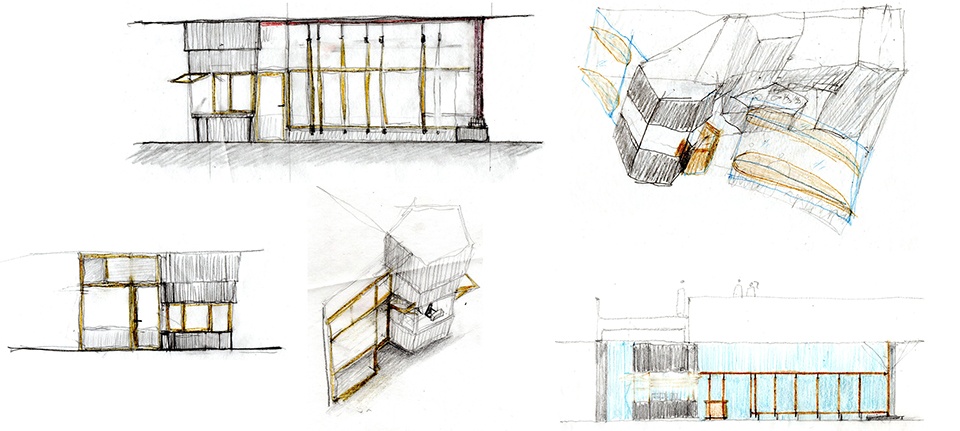

▼草图，sketches © 方书君工作室

The café starts with an“anchor”: Kiosk. Like a small side pavilion in a public square of a city, it opens up in all directions. Its powerful presence catches the eyes of pedestrians coming from any direction – a centre for trading and communication.

▼紧贴建筑转角红线的Kiosk，kiosk close to the site red line © 丁思民

▼叶子柔和地向内弯曲，让出部分红线，the facade bends gently inward, sets back from the red line © 丁思民

与传统咖啡馆中将吧台置于店铺内侧的设置相反，设计将吧台提到外侧最前端，把咖啡制作的过程零距离地展现给外界。两个出入口环绕在Kiosk两侧，使得kiosk更似一个小岛，行人可从内外两侧分别停靠。

Contrary to the traditional café setting where the counter is placed inside the store, our proposal pushes it to the very forefront, showing the process of coffee making to the public in close distance. Two entries surround the kiosk on either side, making it more like an island and people can stop and pass by from both sides.

▼室内概览，overall of interior © 陈颢

▼从主就餐区看向被挤压的过道，viewing the squeezed aisle from the main dining area © 陈颢

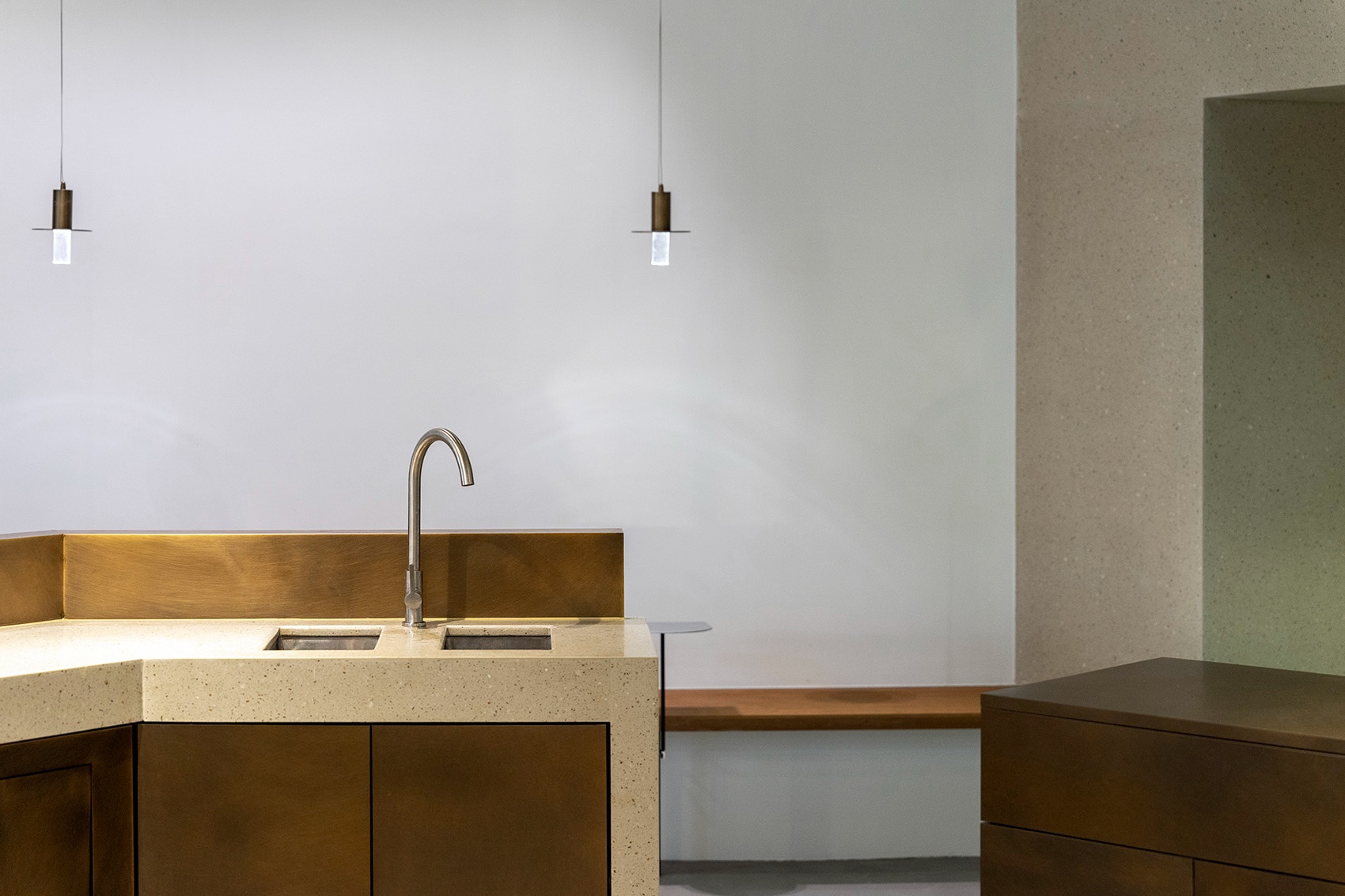

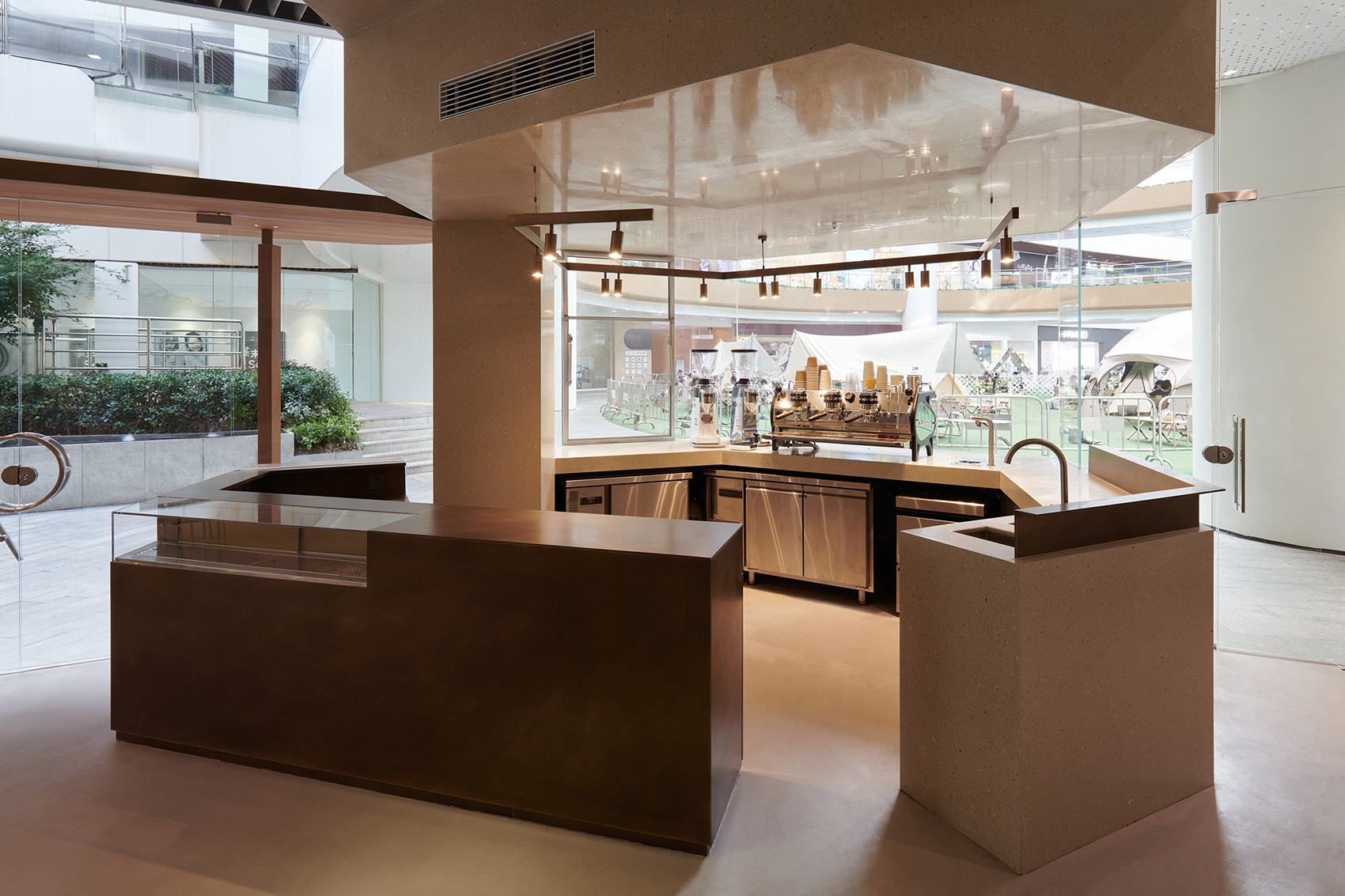

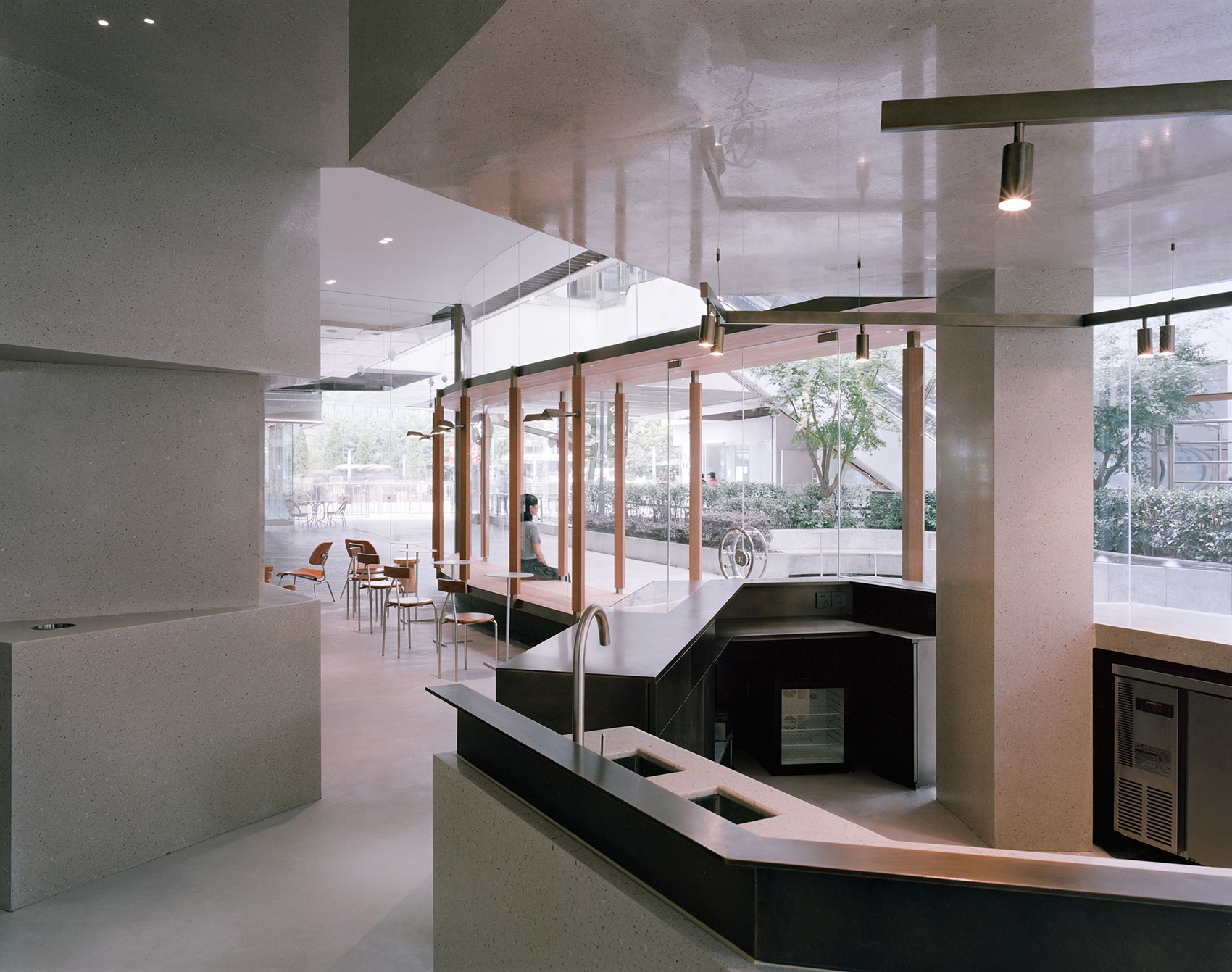

▼咖啡制作区内景，interior of the coffee-making area © 陈颢

▼从制作区看向北侧就餐角，viewing the north dining corner from the production area © 陈颢 / 丁思民

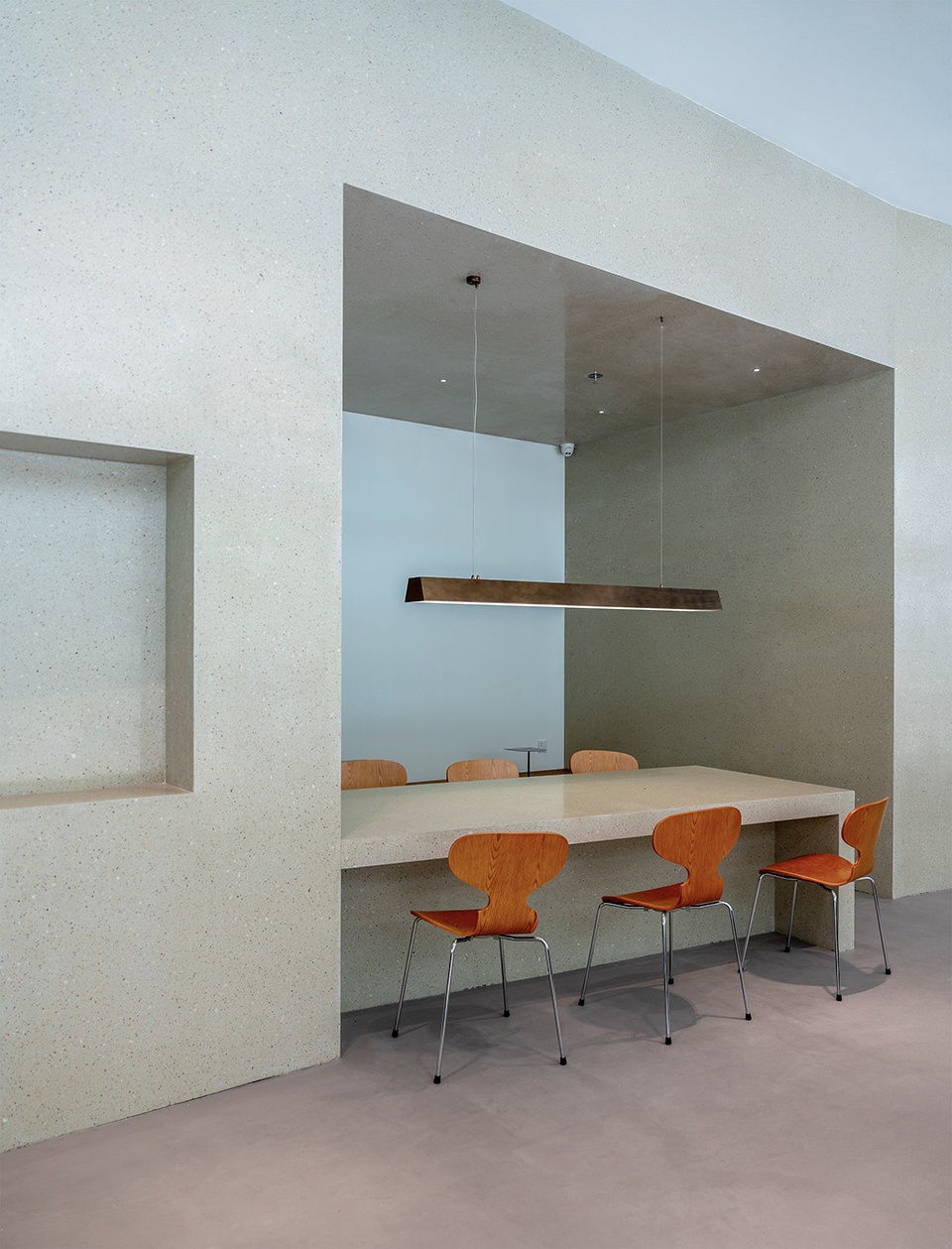

▼水磨石结构在建筑内部形成就餐区，

the terrazzo structure forms a dining area inside the building © 丁思民

▼水磨石结构在建筑内部形成就餐区，

the terrazzo structure forms a dining area inside the building © 丁思民Kiosk的存在感与重量感从端头出发，通过连续的、如洞穴般的水磨石结构，传递到店铺内部，雕刻式地形成了各式功能空间。犹如一块被挖掘过的石头，从建筑内部沿着原有结构生长出来，在靠近场地中心点的位置拐了一个弯，结束于最外侧的转角Kiosk。通过这个动作，被水磨石结构切割出的空间，并经过道的挤压，在规则的红线内产生了对角线般的视线关系。

▼分析图，analysis diagram © 方书君工作室

The presence and weight of Kiosk is transmitted from the head to the interior of the store through a continuous, cave-like terrazzo structure, sculpting various functional spaces: the coffee making area, cashier, storage and dining area. Like an excavated stone, it grows out of the interior along the original column, makes a bend near the centre of the plot and ends at the outermost corner. Through squeezing of the corridor, the space cut out by the terrazzo structure creates a diagonal view contact within the regular plot line.

▼视线的转折，turning of the sight © 陈颢

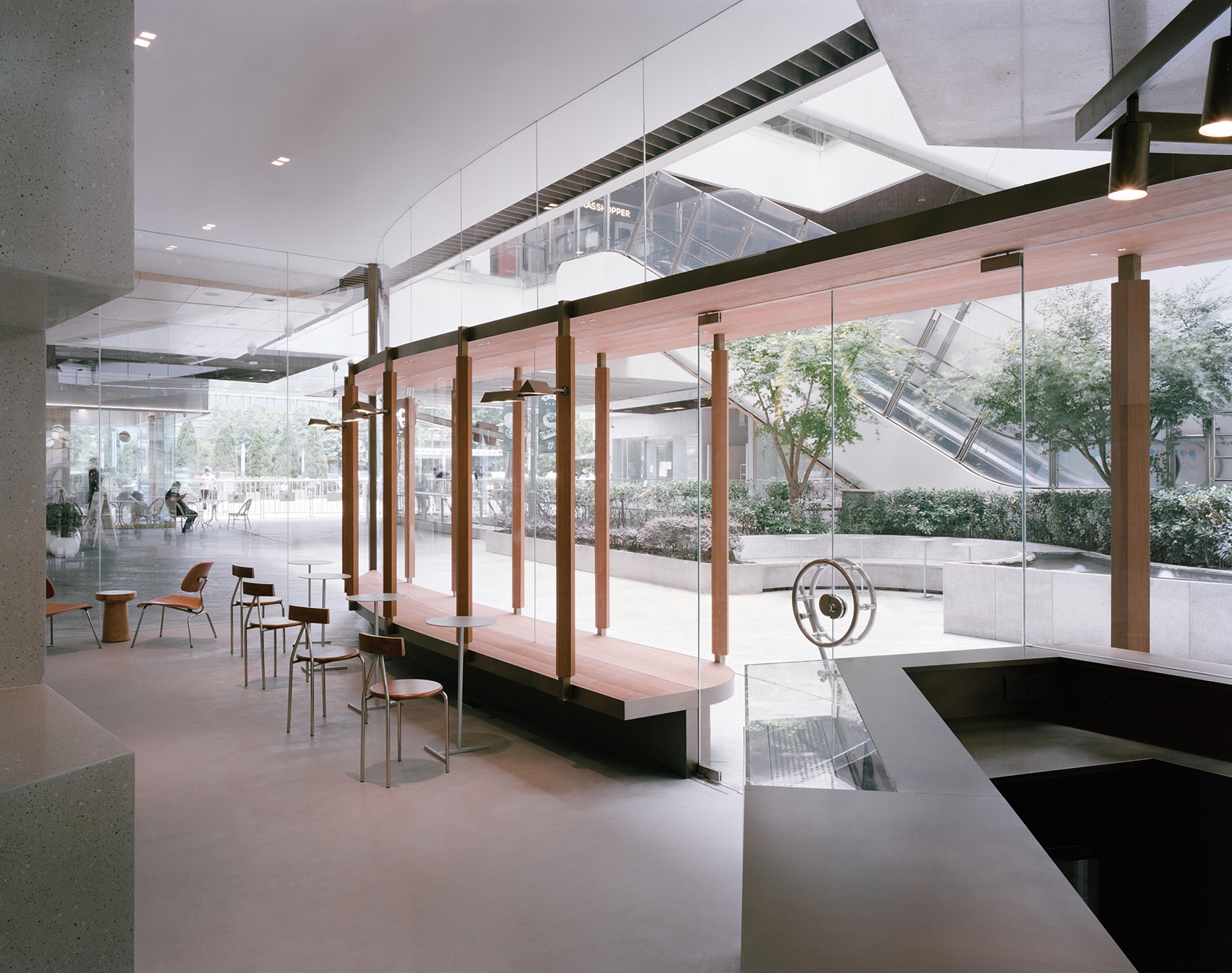

▼叶子形立面内景，interior view of the leaf-shaped facade © 陈颢

▼充满重量感的水磨石结构与轻盈的叶子状木构立面，heavy terrazzo structure and light leaf-like wood facade © 陈颢

与石材的重量感相比，其余立面通过通透的玻璃与结构的构件感，呈现出一种截然相反的轻盈姿态。长向立面上，一片叶子形状的卡座区呈现向内轻蜷的趋势，将路人柔和地“拥”进来。

In contrast to the weightiness of the stone, the rest of the façade presents an opposite lightness through translucent glass and structural elements. Along the long façade, a leaf-shaped seating area tends to curl inwards, gently ’embracing’ passers-by.

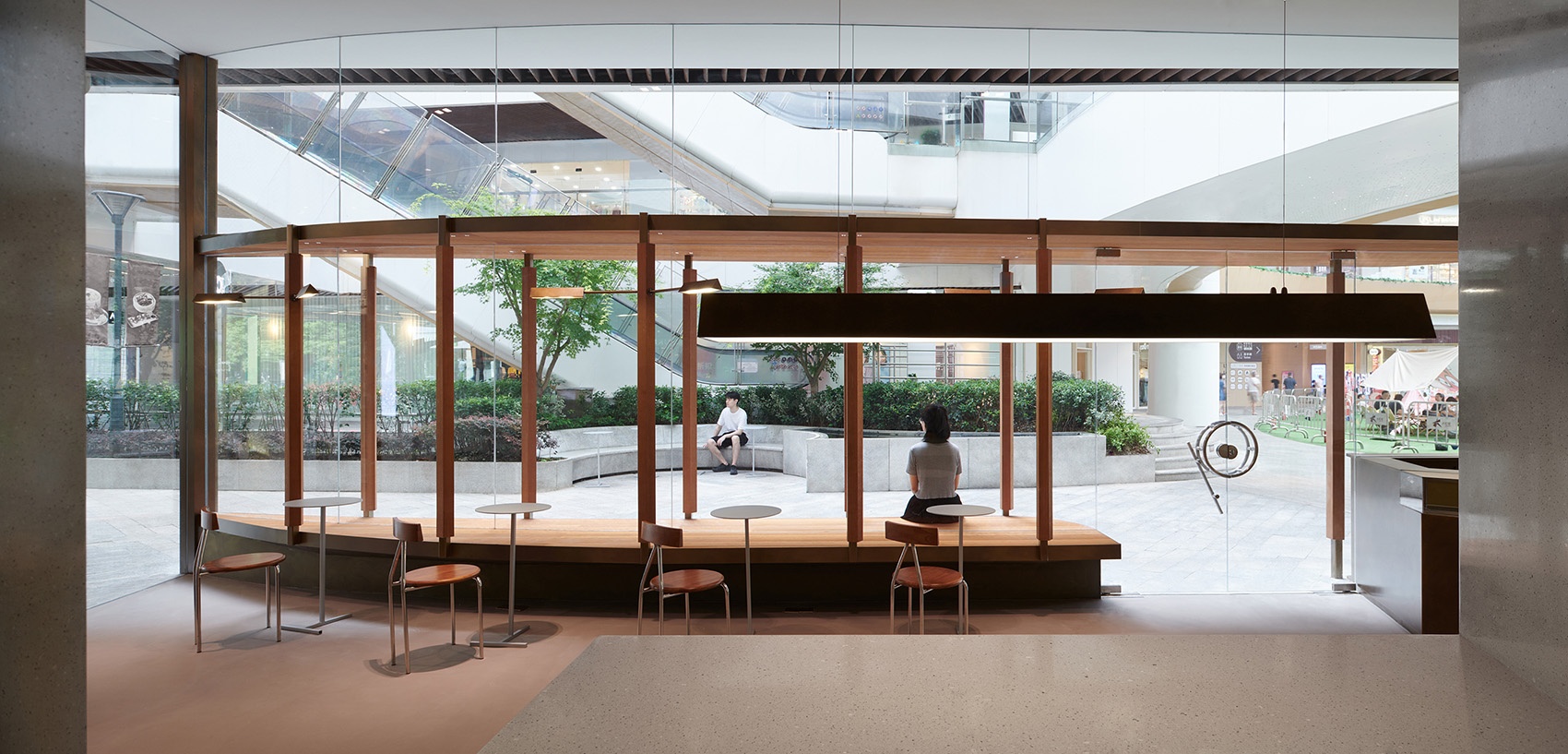

▼从内部看叶子状立面，viewing the facade from interior © 陈颢

▼叶子形状的卡座区呈现向内轻蜷的趋势，the leaf-shaped seating area tends to curl inwards © 陈颢

▼卡座细节，details of the seating area © 陈颢

由樱桃木包裹的木质杆件把大尺度的立面降低为近人的尺度，生成了即开敞又有私密型的空间。通过让出与激活小部分红线内空间，削弱了公区的通道感，同时增强与外界人流的互动性。

Warm cherry wood rods reduce the large scale of the façade to an intimate human scale, creating an open but cozy space. By giving up some areas within the red line and activating it, the passage feel of the mall corridor is weakened, while enhancing and encouraging the interaction with inside and outside

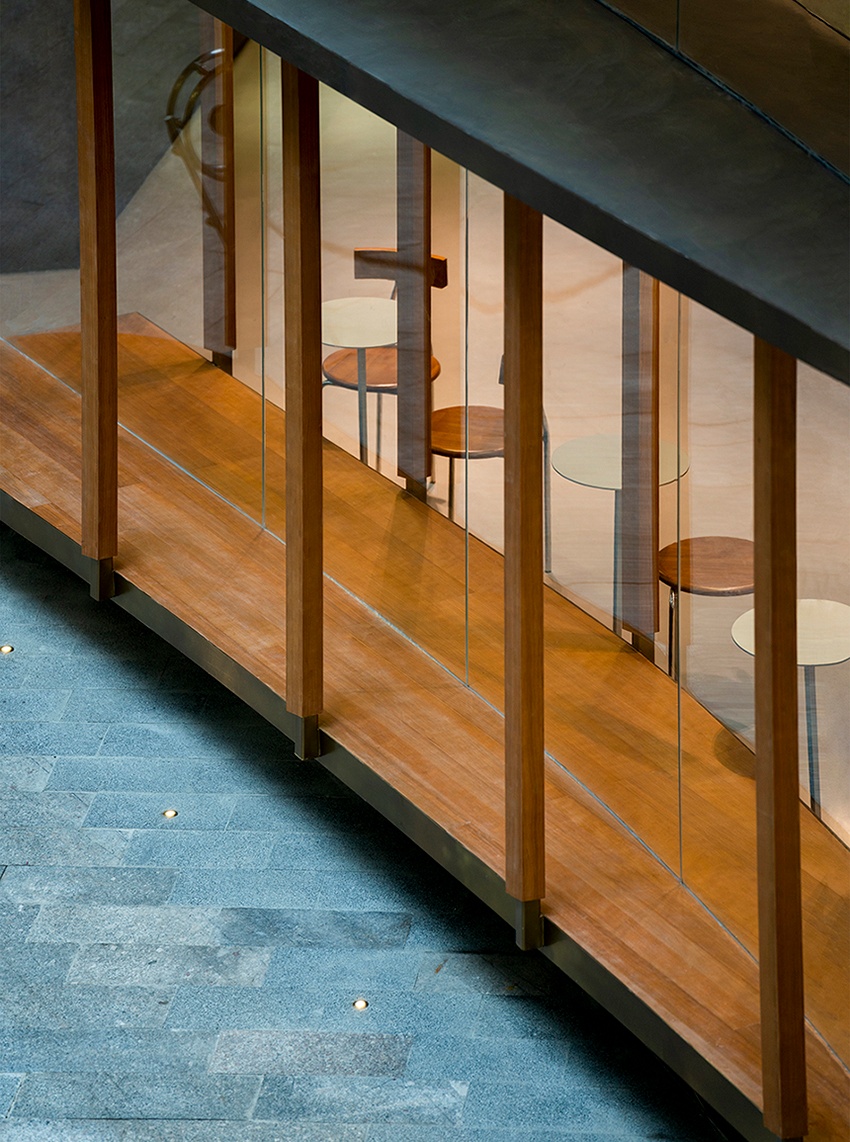

▼叶子形立面细节，details of the leaf-shaped facade © 丁思民
