项目位于上海延安中路老上海杂技团的旧址，园区初建于20世纪20-30年代，50年代此处成立了上海人民杂技团（上海杂技团的前身）。此后经过整体改造，园区保留了所有历史性建筑，现在此区域目前已经成为影视戏剧等创造性工作公司的聚集地。此项目是在园区中心的原上海杂技团的排练室，整栋建筑分为左右两栋（A和C）。

This interior project is located in a recent renovated office park with several blocks of historical buildings. Roomoo design studio was asked by their client – Canada Goose a luxury outdoor brand, to work with two of the most central blocks and turn them into the first Canada goose headquarter office in China.

▼建筑外观，exterior view ©Arch-Exist

两栋建筑虽然连在一起，但在垂直和平行的空间纬度上均没有楼梯和直接的互通关系。在垂直关系上空间相对更为复杂一些。C和A栋均为两层结构，但A栋的二层平台相对于C层的二层平台依然有将近3米的高差，A栋的二层要超过C栋的原始建筑屋顶。目前，加拿大鹅的所在区域为C栋的整栋和A栋的二层加二层的阳台部分。由于A栋建筑的坡屋顶结构，让A栋本身的二层也有增加夹层的可能性。因此整体的办公空间实际上分布在四个不同的高度平台上。

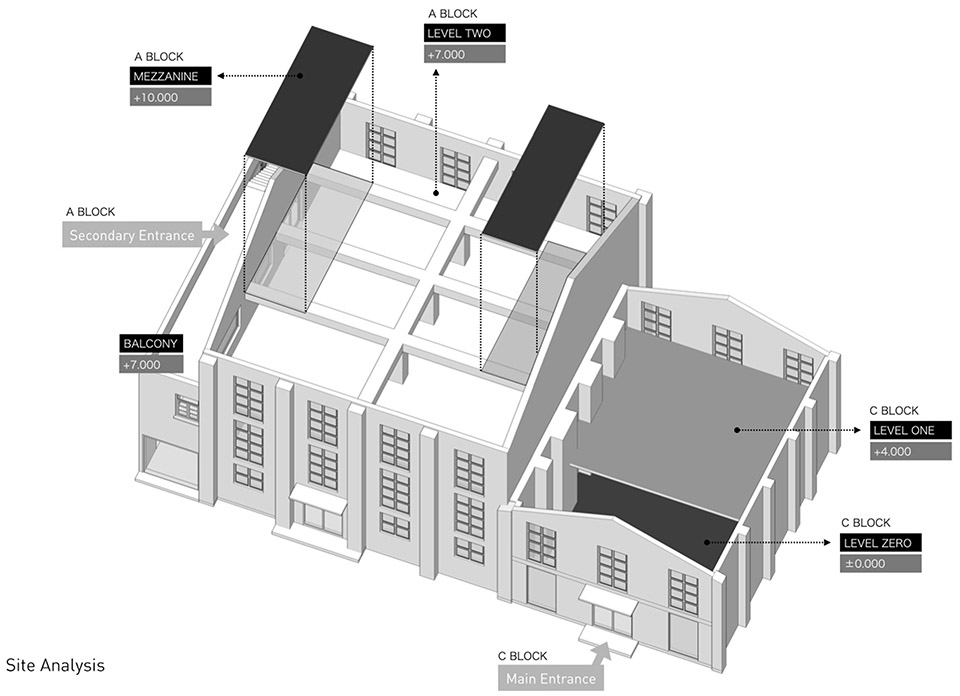

▼场地分析，site analysis ©RooMoo

通过对Whatever Eyewear 本身产品的特有细节特点研究，在整体店面的视觉形象的思考上，是希望把Whatever Eyewear 转化成一种具象的力，通过把这种力进行有形化转换，形成店面中心的设计语言。中心的旋转装置是“Whatever”和“Attitude” 两个词发声后震动的视觉形象，也是最主要的展示区域。每片结构采用铝板冲孔做法，在减轻整体结构重量的同时满足对细节花纹图案的雕刻要求。箭头图案镂空的片状结构和子弹镂空图案形成的中心结构共同构成了半通透相对轻盈化的Soundtrack的有型体。同时，结构中心的发光设置和透明亚克力的展示层板可以最大化的展示产品不同角度的的细节。最终整体的形态通过中心旋转把手分成上下两部分，与Whatever 品牌LOGO图案相互呼应，在远处提供一种扰乱空间秩序的视觉感。另外，整体结构也可通过天花固定的旋转轴承来提供不同场景展示的需求。

▼中心旋转装置的设计概念，将“Whatever”和“Attitude” 两个词发声后震动声波视觉化，concept of the rotating installation in the center, presenting the visual image formed by the sound vibration of vocalized words “Whatever” and “Attitude”

空间改造在尊重已存建筑的基础上希望给予空间新的生命和温暖的现代触感，符合客户整体的品牌形象。

The intention of this renovation work is to respect the old architectural spirit at the same time give it a new life and warm feeling with a modern touch.

▼丰富的层级关系，a multi-layered space ©Xiaoyun

外立面在保留原有建筑立面材料，窗户和涂装的基础上，通过金属板结构勾勒出原本建筑的窗体结构和入口区域。棕色的金属板颜色提取自原有建筑的颜色体系，通过在颜色中加入珠光粉，增加其阳光和灯光下颜色的可变性，跟老建筑外立面的材质形成对比。灯光的处理通过极简的线性灯光体现出老墙面的肌理感，进一步突出材质之间对比。LOGO的双层设计也通过背光的表现方式在勾勒出品牌的LOGO轮廓的同时，照亮原本建筑体上保留的痕迹。

The facade textures are kept as the original, the renovation work plays a subtle role and an extension of the interior, cladding metals are used to emphasize the outlines of this building, also to protect the edges of the original openings. The color choice of facade material is also from the interior elements.

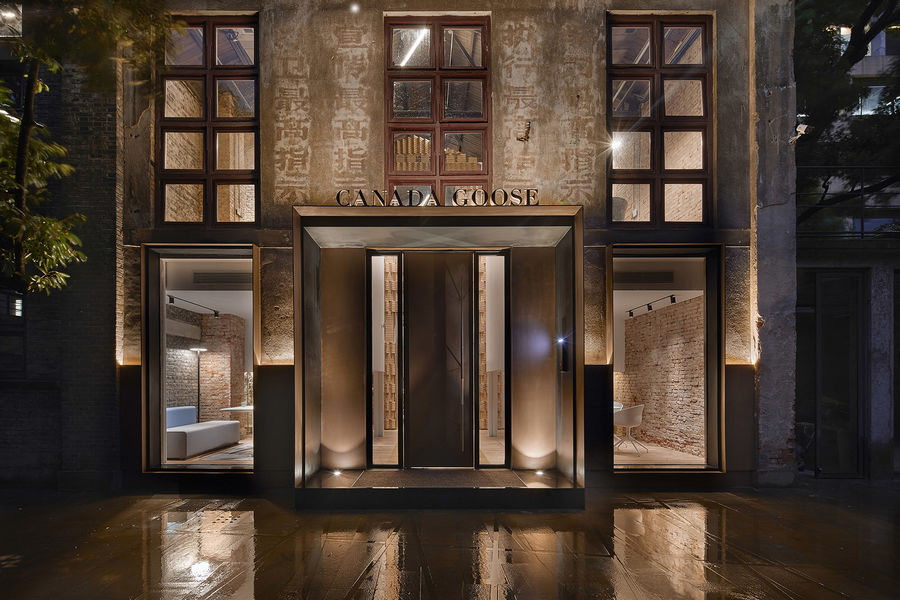

▼入口立面，entrance facade ©Arch-Exist

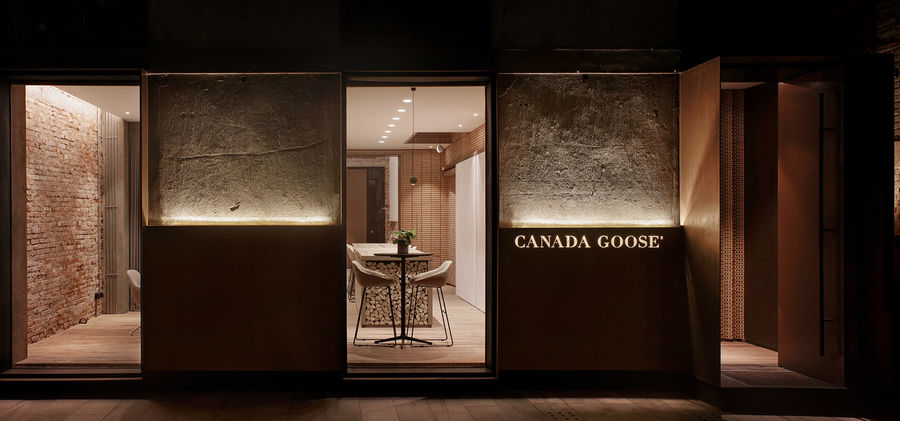

▼金属板结构勾勒出原本建筑的窗体结构和入口区域，cladding metals are used to emphasize the outlines of the existing building, also to protect the edges of the original openings ©Xiaoyun

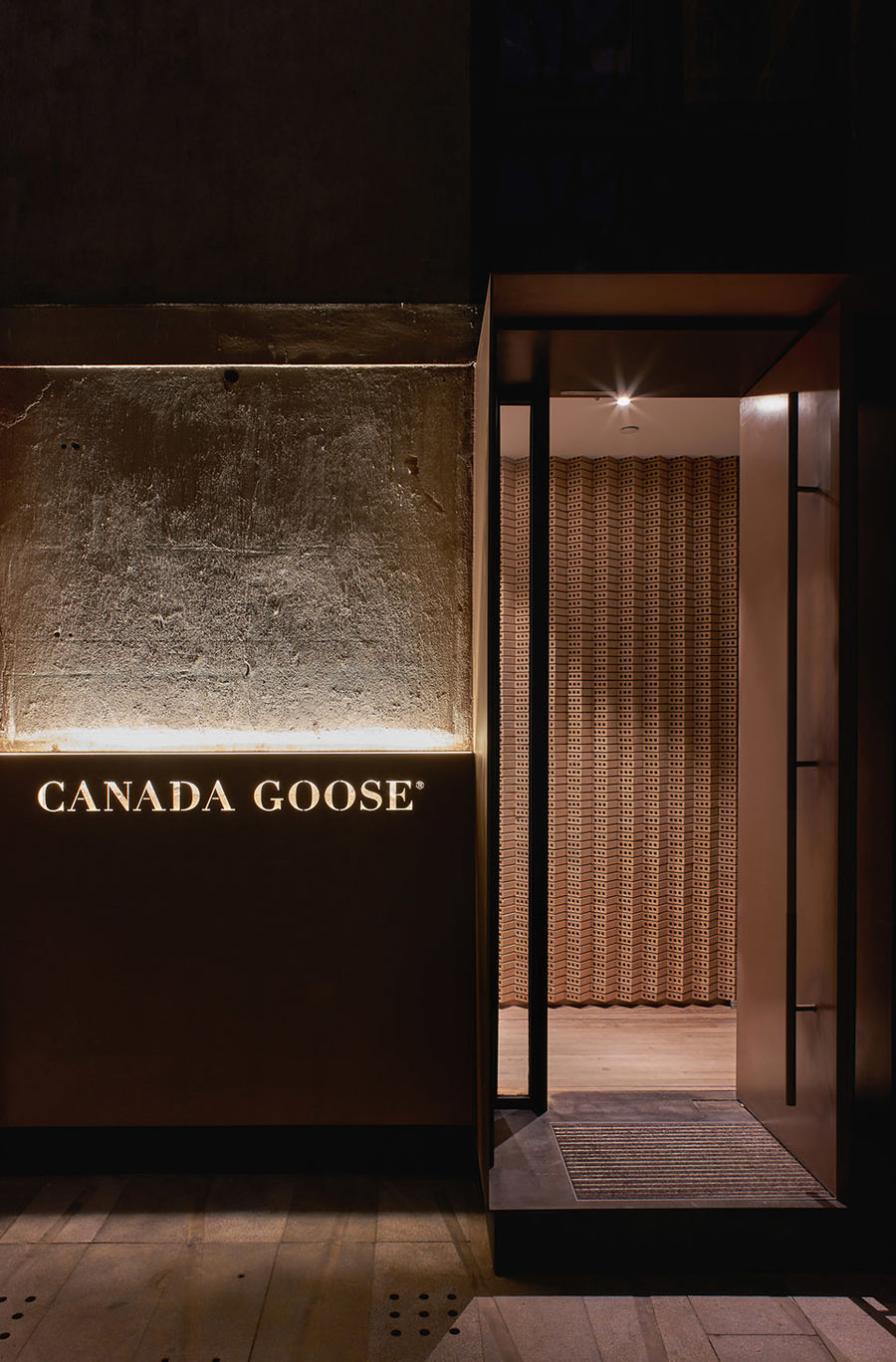

▼灯光的处理通过极简的线性灯光体现出老墙面的肌理感，the texture of the old wall was highlighted by the linear light fixture ©Xiaoyun

进入C栋，橙色烧结砖形成通高的主体结构构成了空间的主视觉，形成了空间的第二立面，连接了C栋一层茶歇、会议等功能的同时，并延伸到了C栋的二层平台。并通过新的组合方式致敬空间老砖墙，并提供新的延展性。

Walking into the office from block C, a new made brick wall with full height is playing a contrast to the historical elements. The color choice of bricks is intent to give a warm welcome to the attendance for visitors.

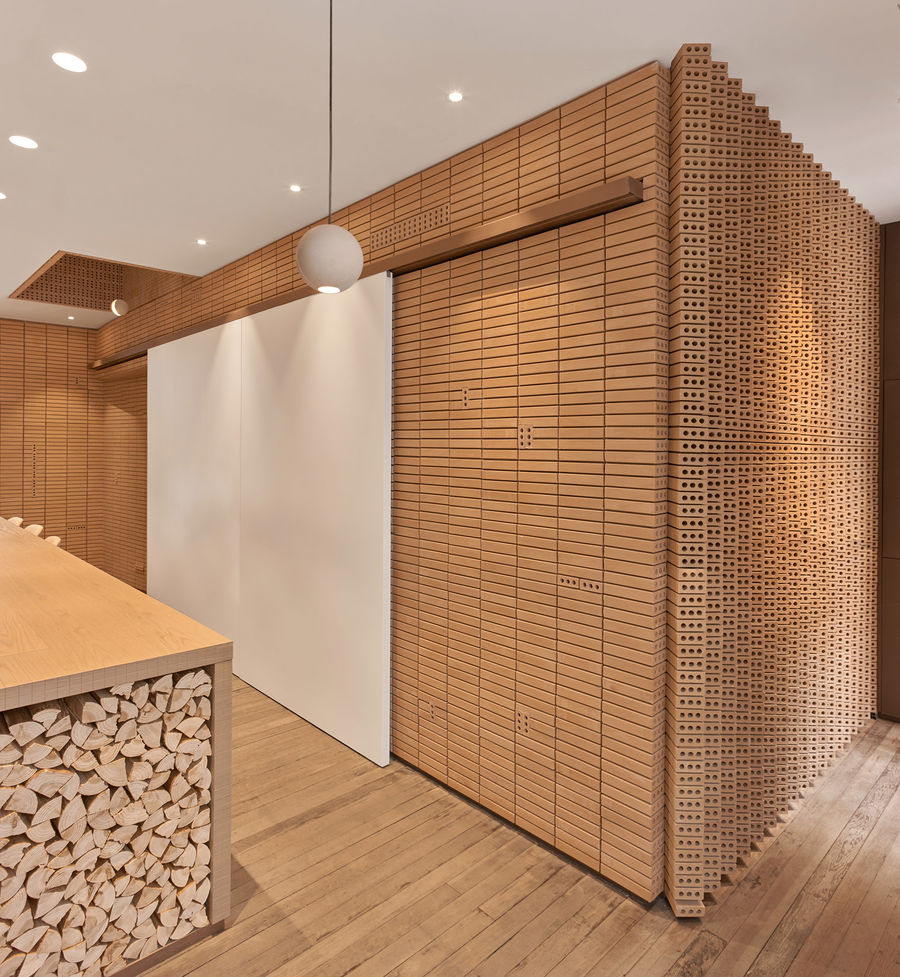

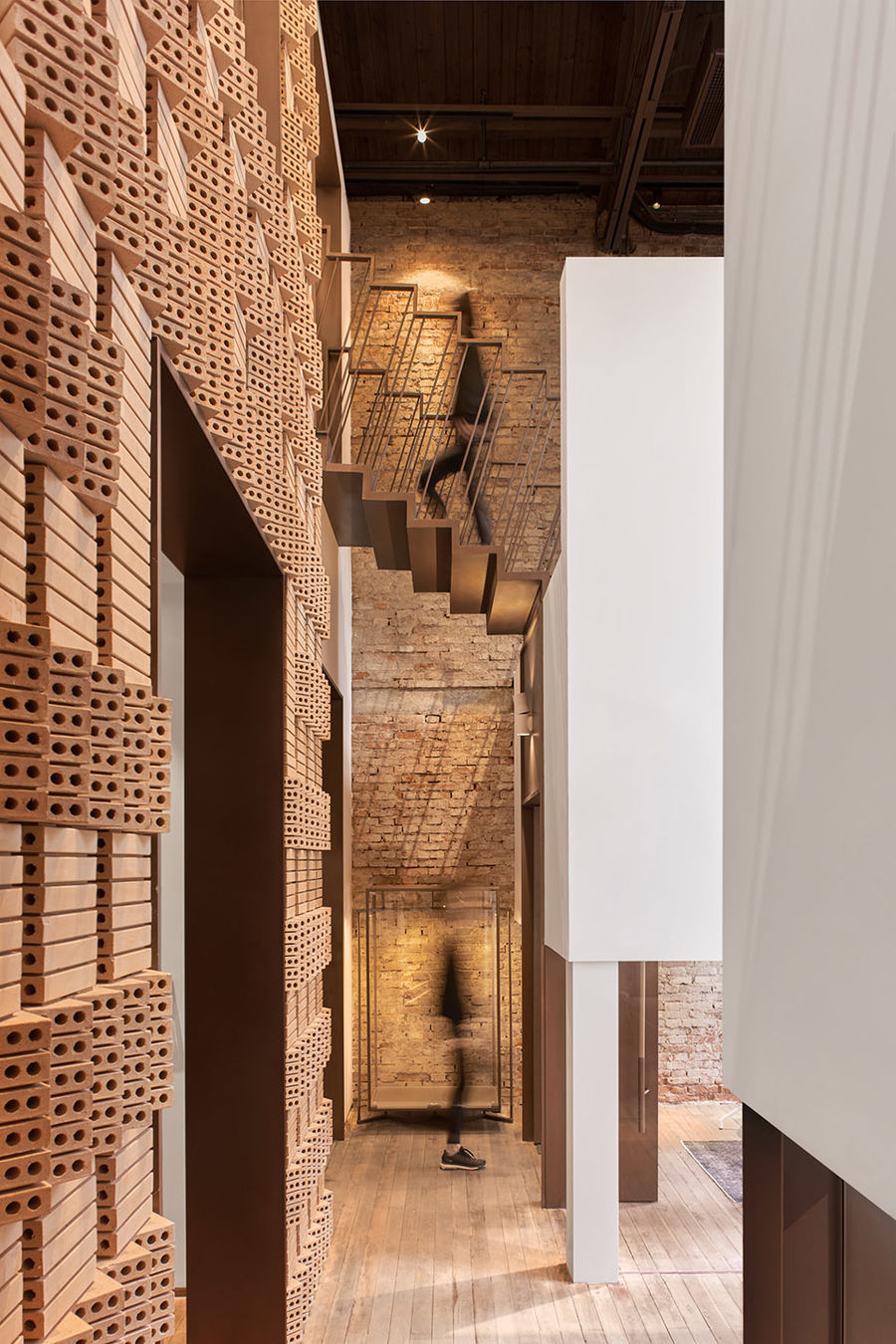

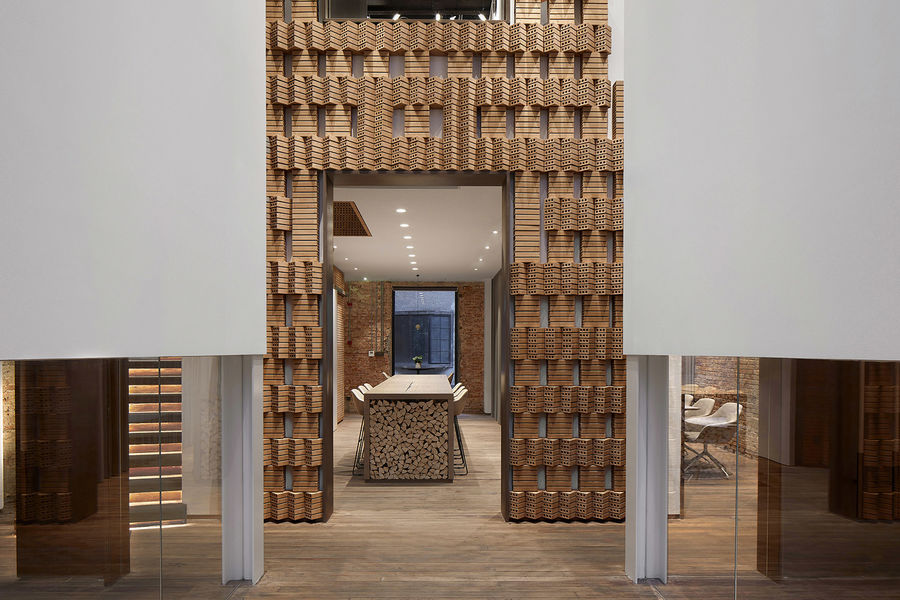

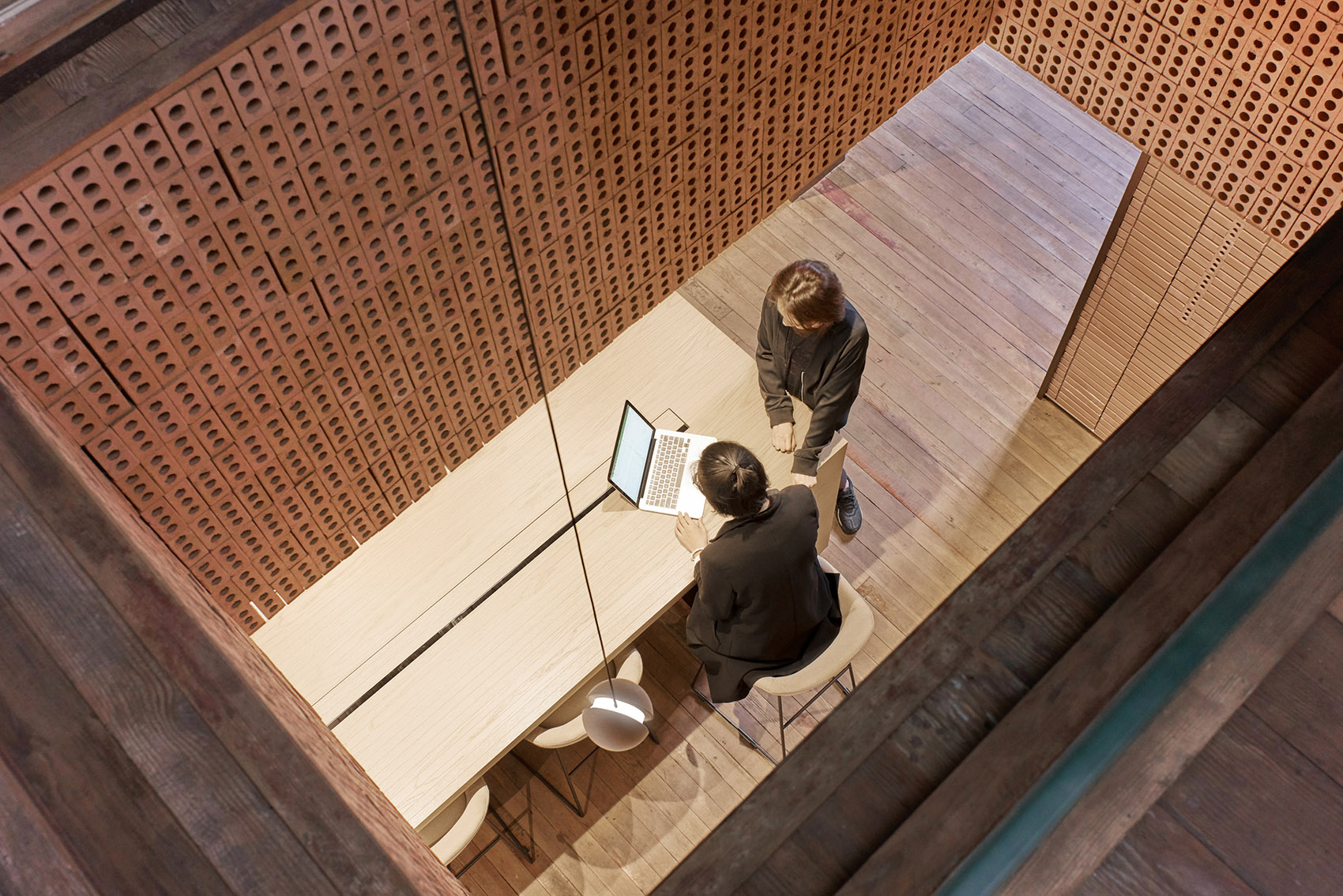

▼橙色烧结砖墙构成了空间的主视觉，the new made brick wall with full height dominates the main space ©Xiaoyun

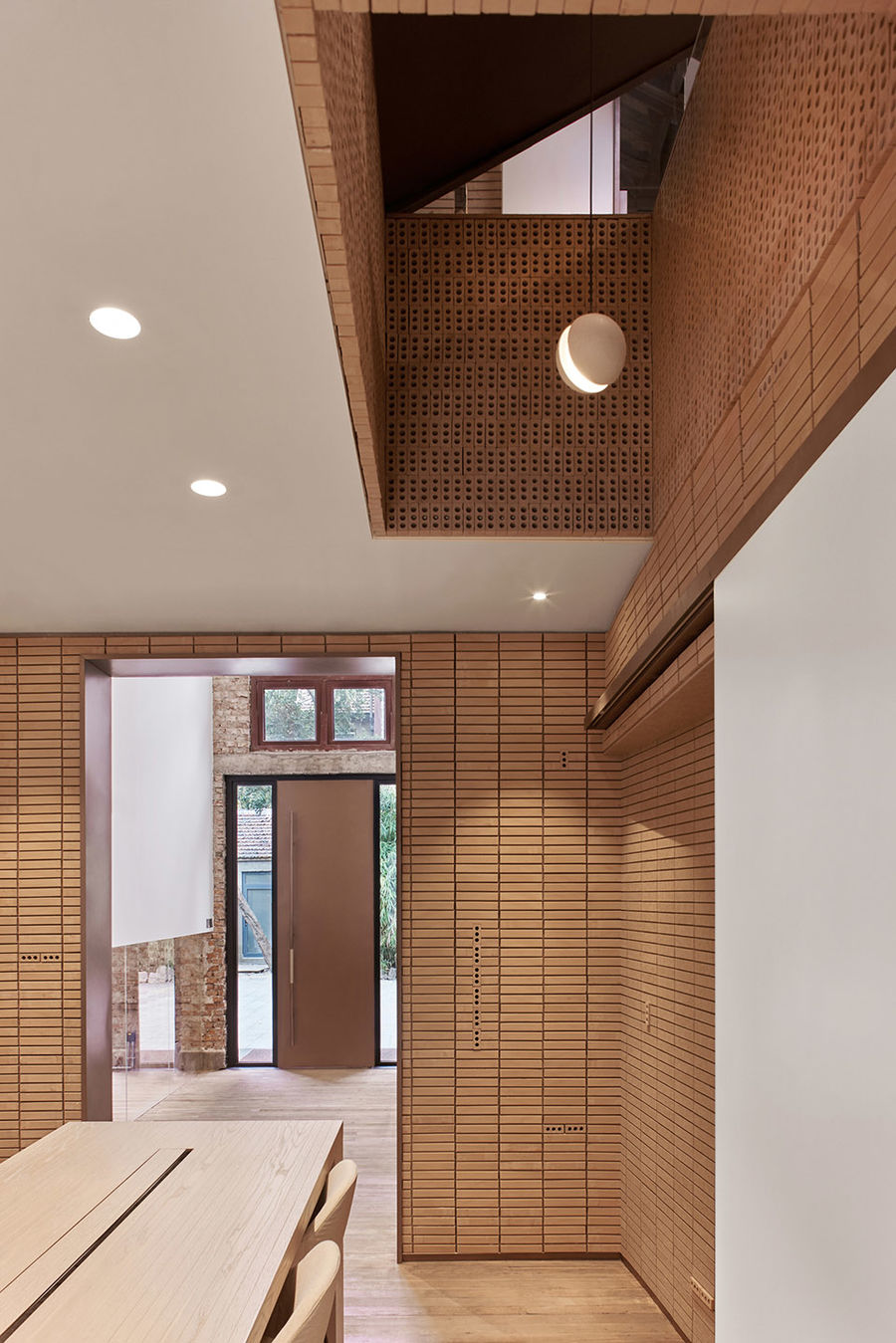

进入二层立面内，由相同砖形成的整体视觉感在连接空间不同功能的同时，形成了抽象的烟囱结构形象，连接品牌整体给人的温暖感。茶歇区整体吧台设计为隐藏式，将水槽、垃圾收纳、冰箱、烤箱、会议线槽等功能进行融合，优化整体空间的视觉美感，实现多功能使用情景。

Coming in to the heart of this block, a shared core is visually connecting the pantry to the very top of this building, almost like a chimney place in a condo, here is when the meetings and gathers happened.

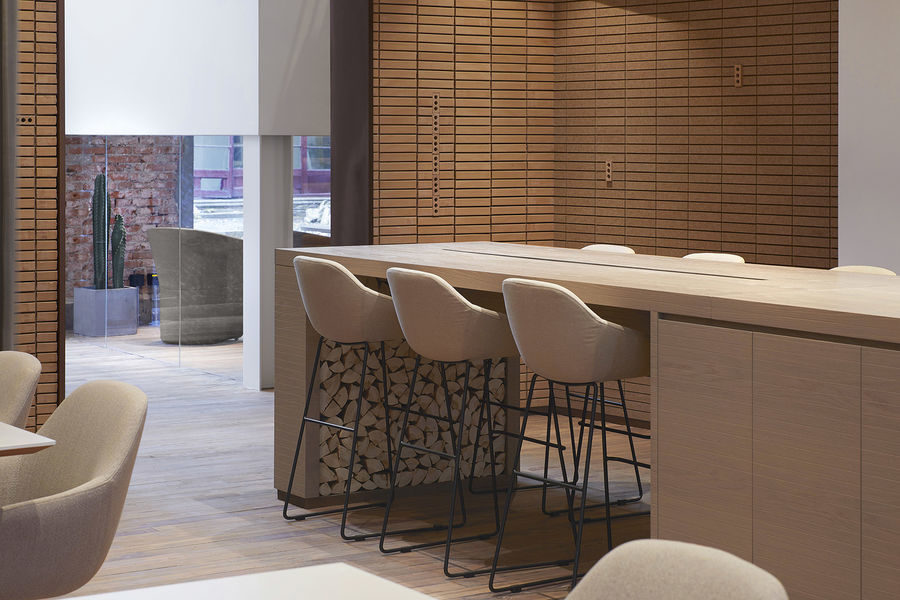

▼茶歇区，tea break area ©Arch-Exist

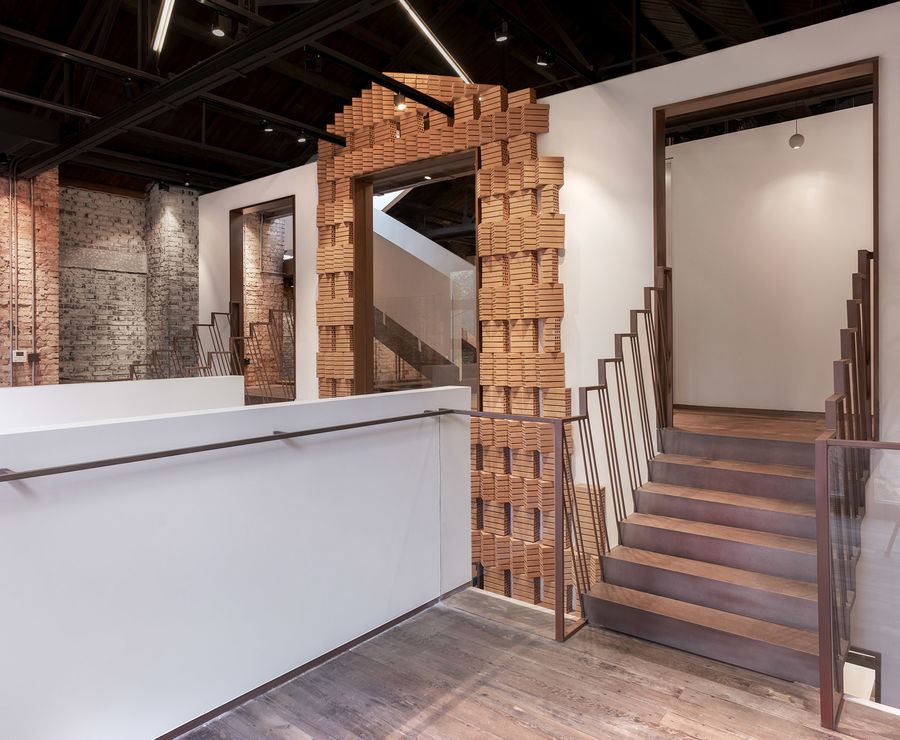

基于对原始建筑室内环境和材质的尊重，室内空间的营造更加强调老材质与新结构和新材质本身的平衡和联系。内部空间将室外金属板的材质延续到室内空间形成空间分割的框架以及楼梯结构，内外连接。门洞形式的结构保证了在空间的每个角度都能同时观察到原始建筑材料和新结构之间的对比。

The brown metal elements are used both indoor and outdoor. They connected the whole building with different functions and emphasized the contrast between old and new in term of material choices and construction solutions.

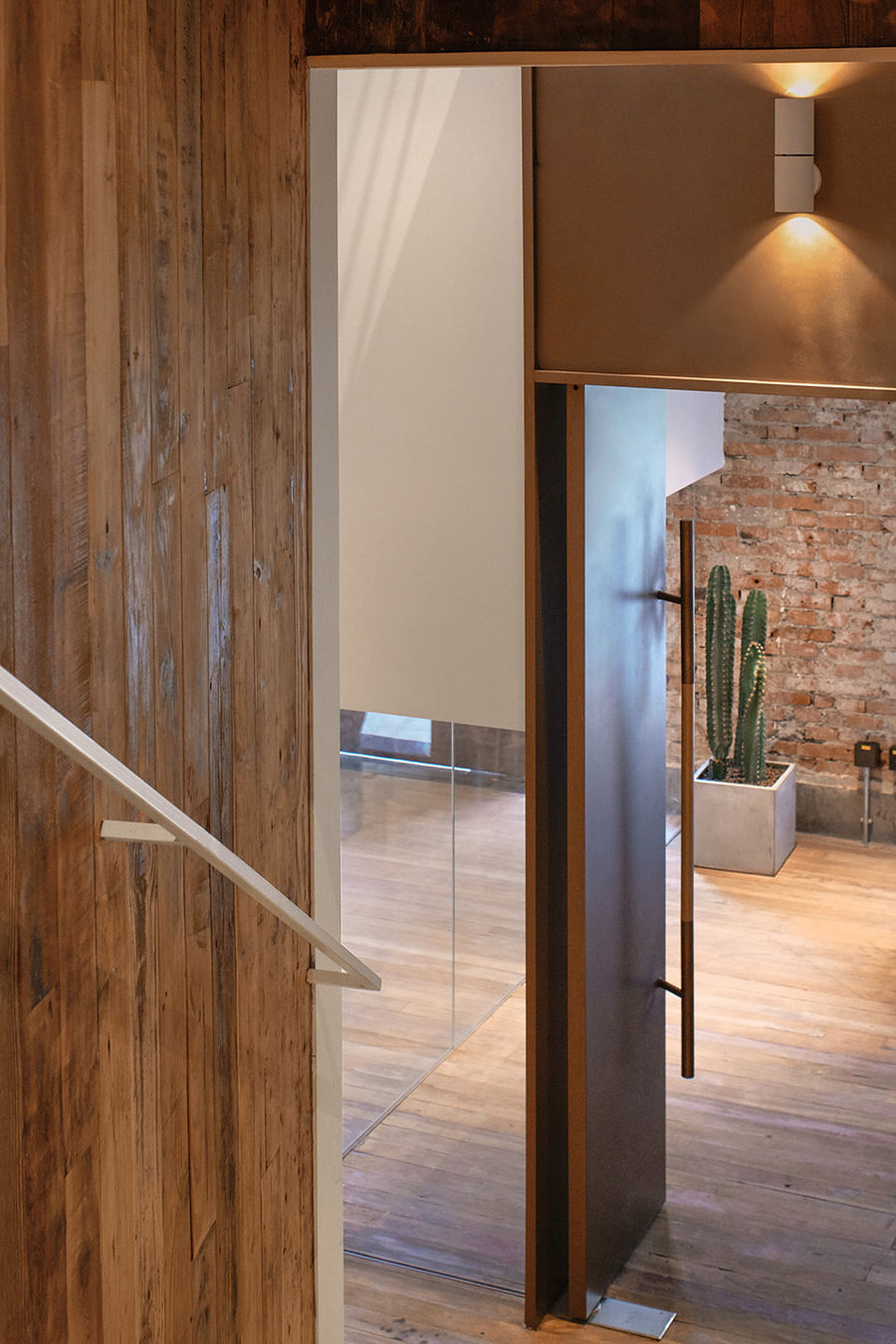

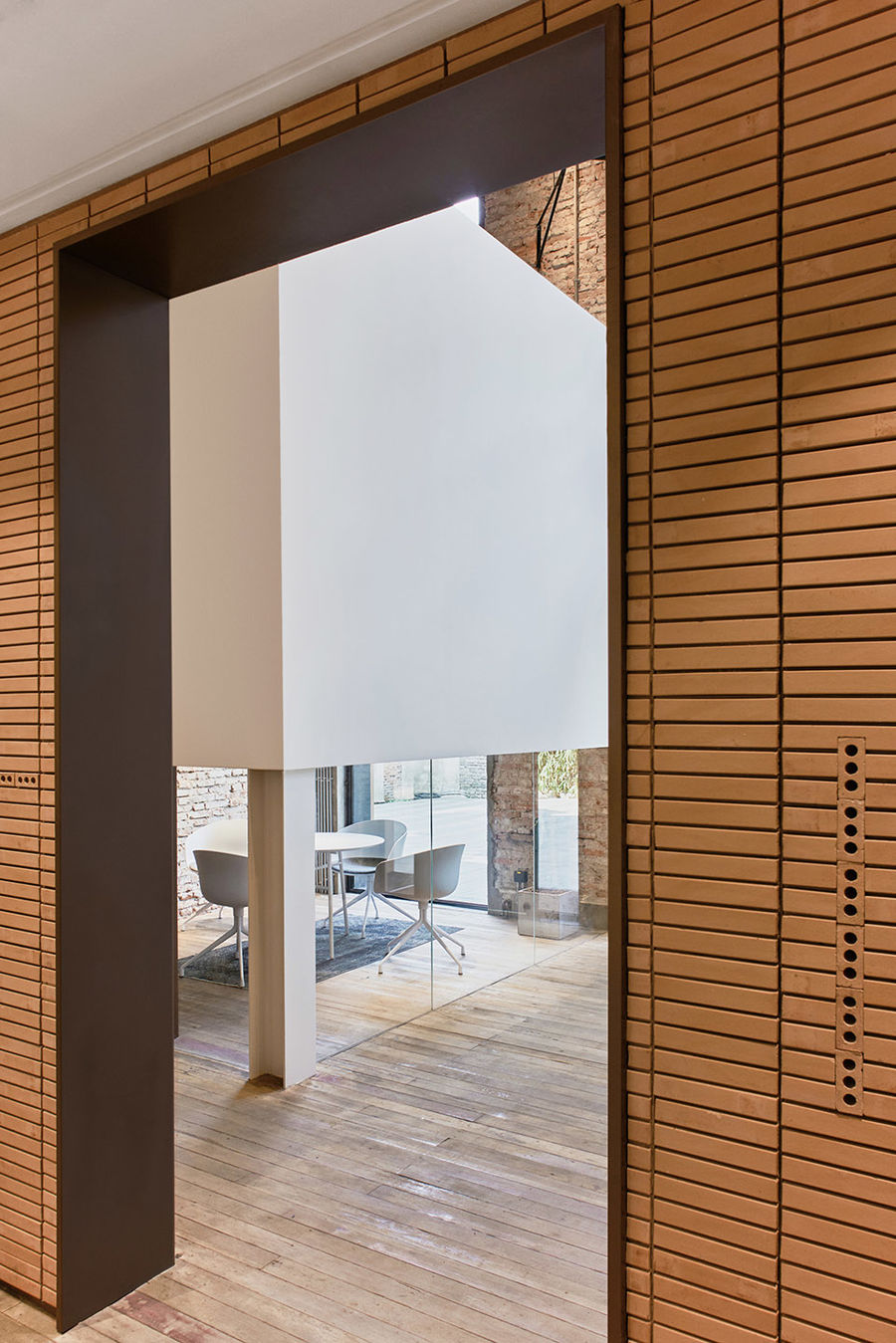

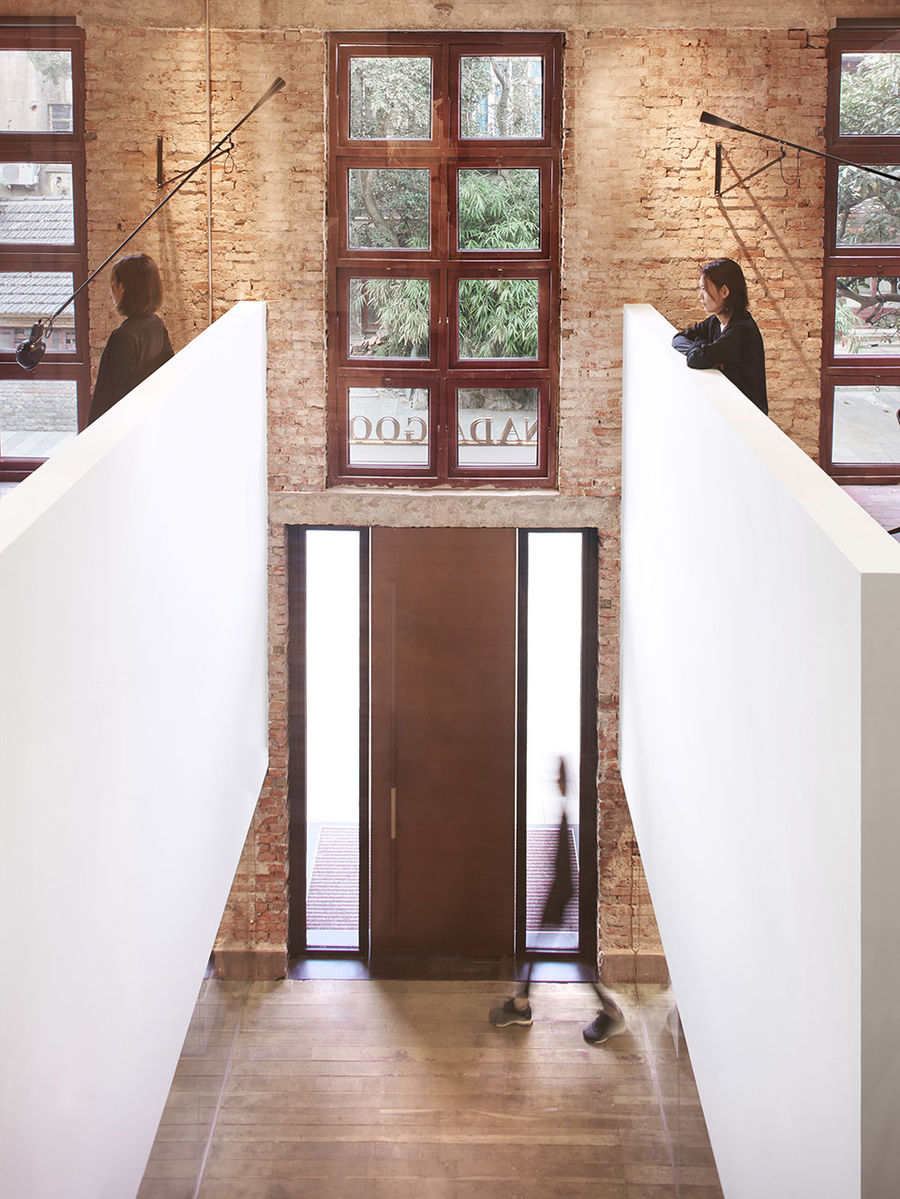

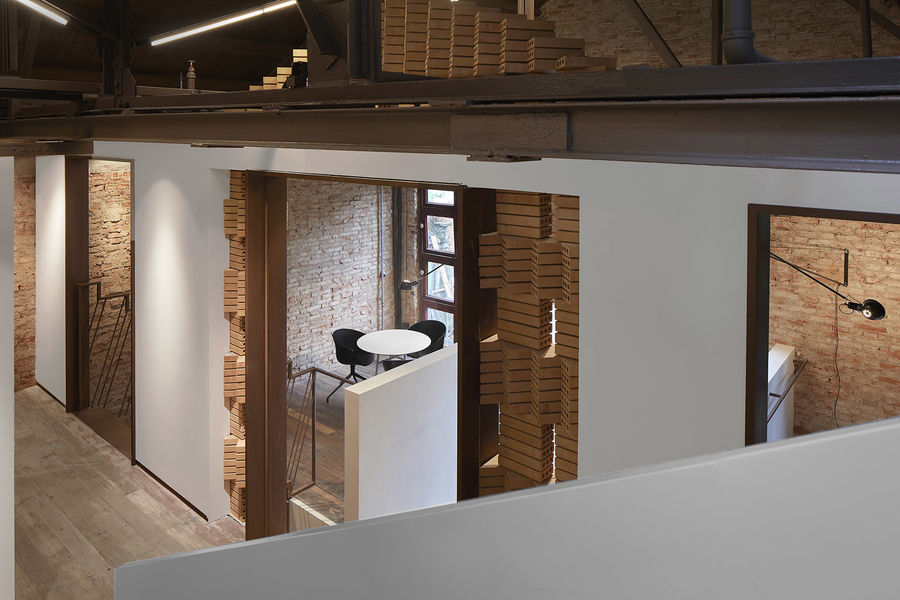

▼室内空间的营造强调老材质与新结构和新材质本身的平衡和联系，the interior design focuses on the contrast between old and new in term of material choices and construction solutions ©Arch-Exist

两个小会议室紧挨主入口，在强化通透的基础上，自然的保证了会议室工作的私密性以及通道的通透性。

There are two small meeting rooms right after the main entrance. They are rounded with half-height transparent partitions which keep the meeting rooms private, at the same time retain the visual connections.

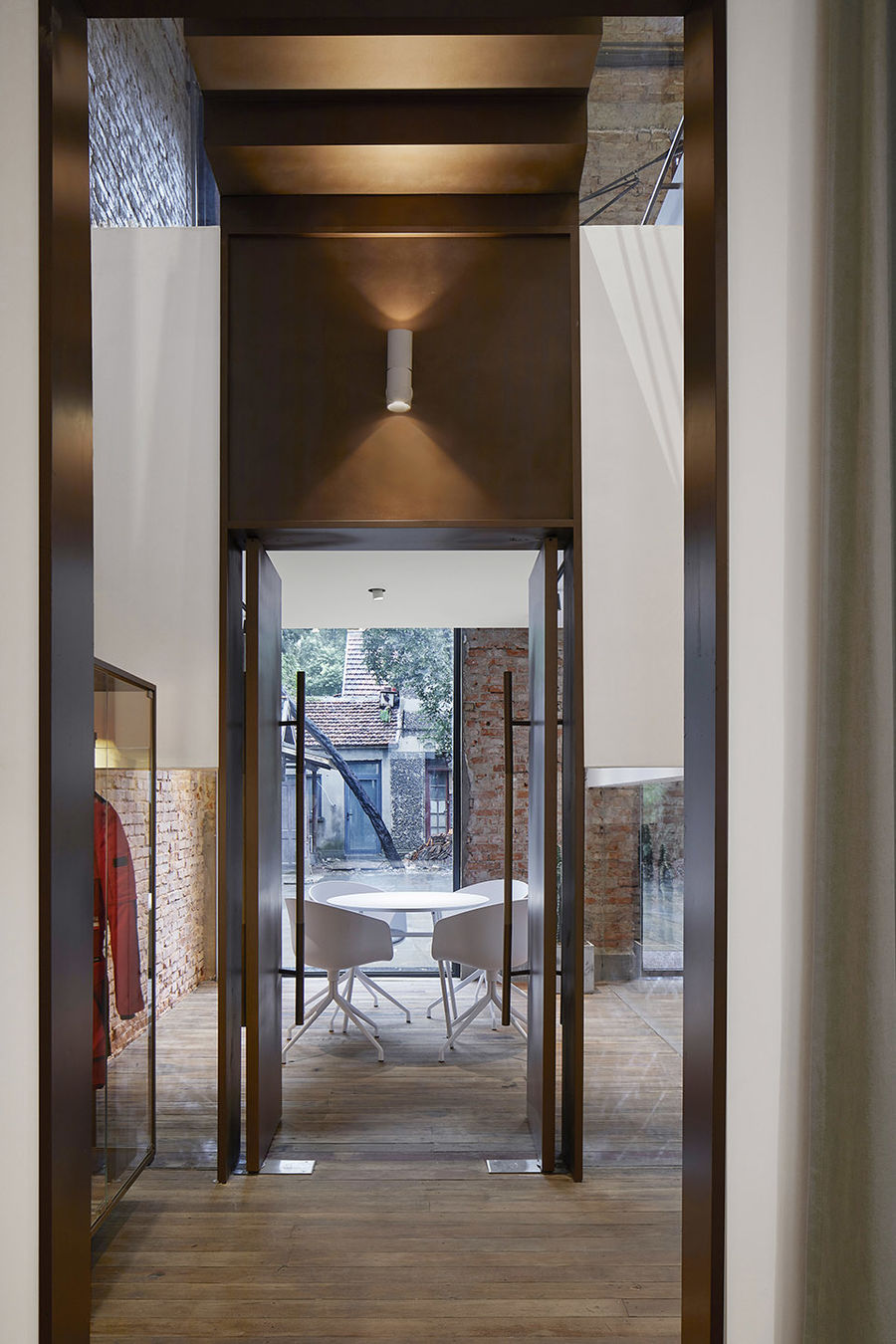

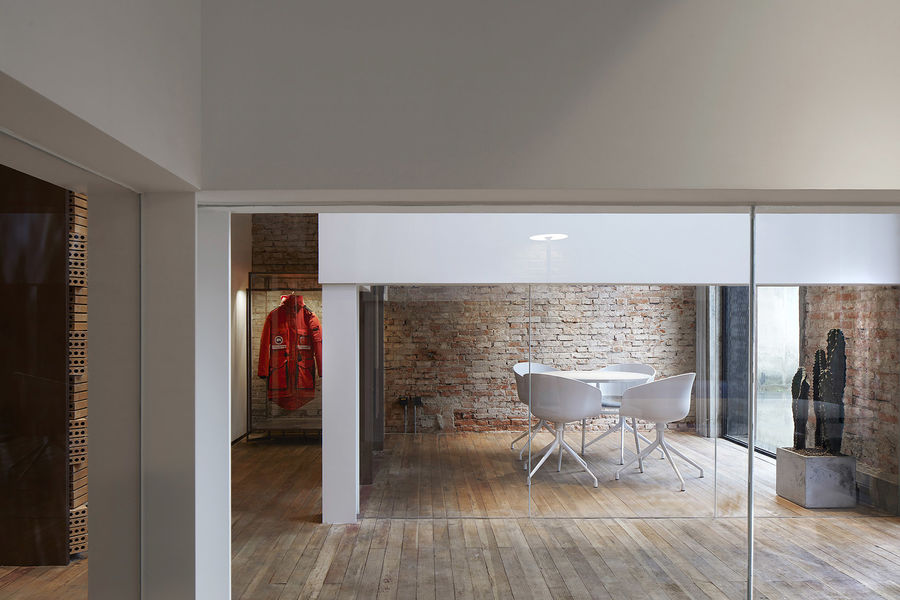

▼一层小会议室，small meeting rooms ©Arch-Exist

原始建筑拆除的老木板形成了C栋整体地面和一层至二层的楼梯结构。老木地板通过底层结构的防腐加固，表面的清理打磨和上蜡，赋予了老材料新的使用周期，同时可以唤起人们老的生活记忆当人们听到地板发出的“吱吱”声时。

The staircase to the second level in block C is made from old elm wood boards, the steps come in original wood color and finish to remind people of old building memories through hearing a little ‘crunch’ sound when people step on them.

▼老木地板赋予了老材料新的使用周期，old elm wood boards bring new life to the space ©Xiaoyun

通过加固C栋一层主入口的两个会议室顶面，在C栋的二层平台与一层平台之间原本挑空的区域增加了两个小的共享空间。通过伸展状态的楼梯延伸了整体C栋二层平台空间。由于高度差，在处理C栋和A栋两个平台连接时，C栋屋顶的结构开窗在满足单跑楼梯行走高度的同时，将室外的自然光和屋顶的景色引入到C栋和A栋里面，增加室内亮度。On the upper level of this area, two short staircases are going to the top of the small meeting rooms, which are two shared spaces with flexible functions.

▼室外平台，outdoor terrace ©Xiaoyun

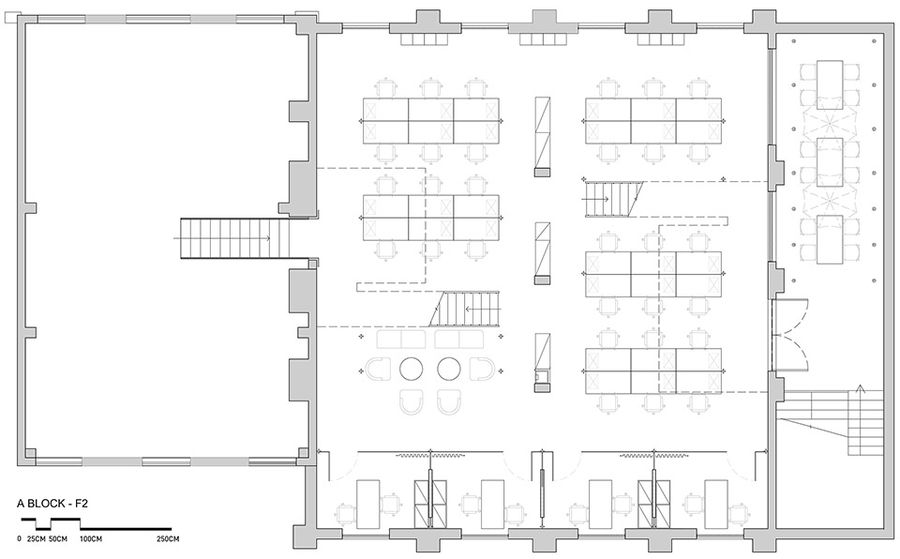

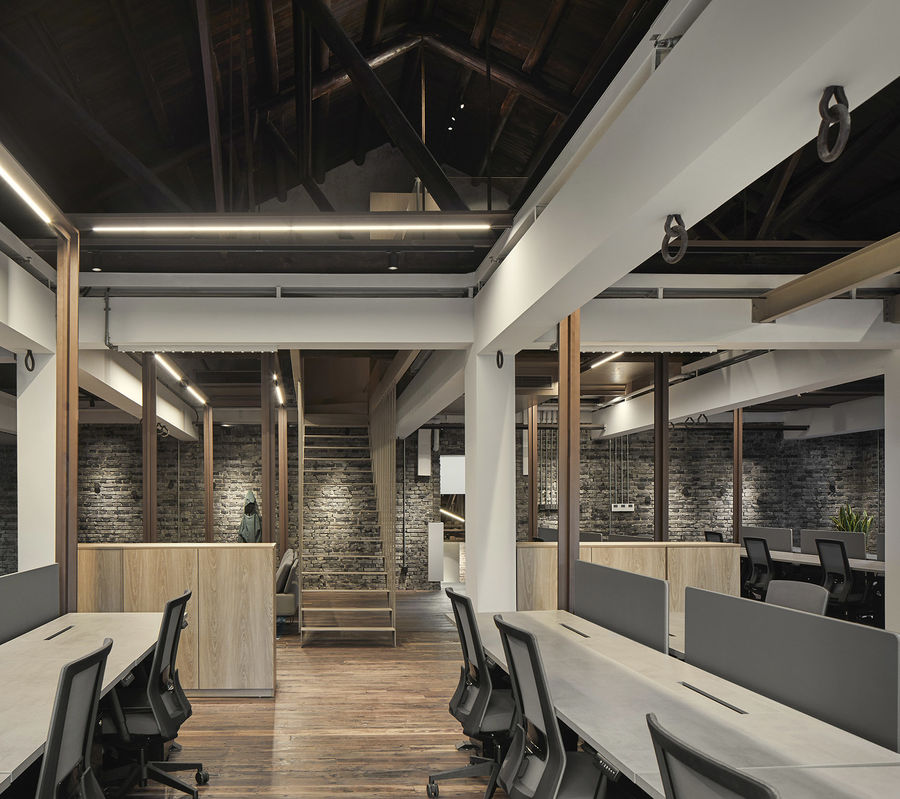

A栋区域为CanadaGoose的主体办公区域，空间整体7米的层高被分成上下两个部分，在原始木屋顶结构和白色原始梁体中间，6个新增金属结构框架置于工作位的顶部，提供空间办公照明功能。最大化保留原始结构，减少悬吊装置灯具等结构对原始空间的破坏。新增照明结构的细节是对德国建筑师Mies Van der Rhone的“Christian Column”的致敬。Through another staircases is Block A where are the main working area. This 7meter high space with pitched wooden roof, is divided vertically into two parts by series of concrete beams. In between of the wooden roof and concrete beams, 6 cubed metal frames are placed on top of the workstations and become the main lighting system. The idea is to avoid the hanging installments and leave the roof neat and clean. The detail design of the lighting frame is to pay a tribute to the “christian column” by German architect Mies Van der Rhone.

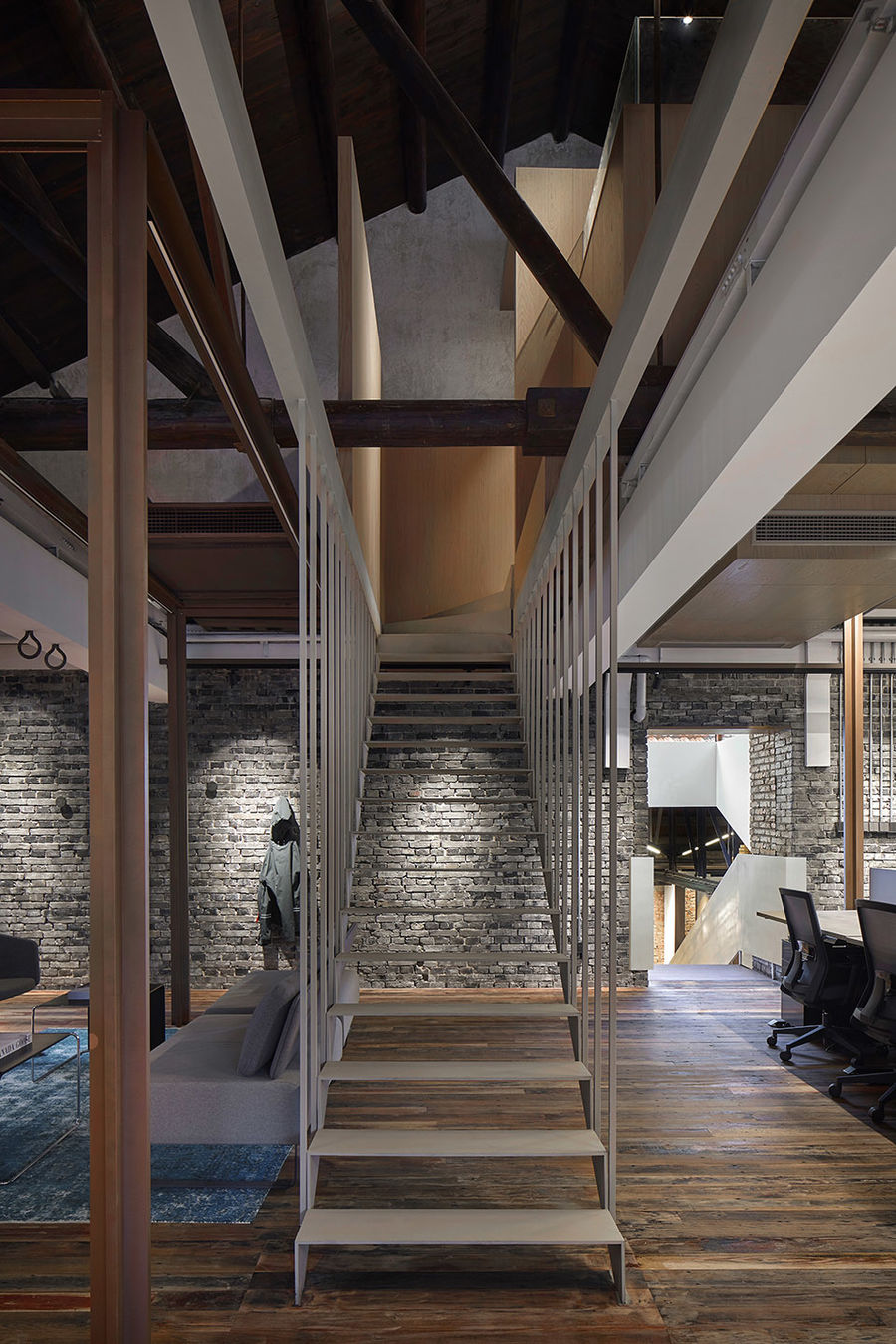

▼原始木屋顶结构，the existing wooden roof ©Arch-Exist
